The
OverBilt SportLoader provides a simple and effective method of hauling
a motorcycle while also providing the ability to tow a trailer, camper,
or travel trailer. The motorcycle will ride approximately one inch
off the bed of the pickup, providing a stable base for the ride.
To load, attach the channel extensions to the rear of the loader and
secure with the pin. Run the cradle to the base of the SportLoader
and roll the front tire of the motorcycle into the cradle, tighten
the bracket against the tire and strap the motorcycle to the cradle
for further stability while loading. The rear tire of the motorcycle
will track in the channel as the motorcycle is pulled into the bed
of the pickup.

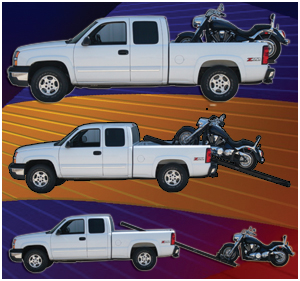

As the motorcycle is pulled up the channel, the unit pivots on a tube
attached between the tailgate mounting posts, lowering the motorcycle
to the bed of the pickup. When the motorcycle’s tire reaches
the front of the pickup box,the motorcycle is fully loaded and ready
to be strapped in for travel.The channel extensions are secured in
the bed of the pickup when not in use.
One person loading and unloading |
Optional support stand for working on your bike-SC9012 |
|
|
Stable base for cycle (approximately 1” off the bed) |
Additional Cargo Buckle (SC9011) |
|
|
Removable ramp extensions store in pickup bed |
Pivot Tube Required (See Application
Guide) |
|
|
Extension available for over-height pickups (SC9010) |
No modifications to the pickup box or wiring required. |
|
|
||
 |
||
